Spacing#

Spatial System#

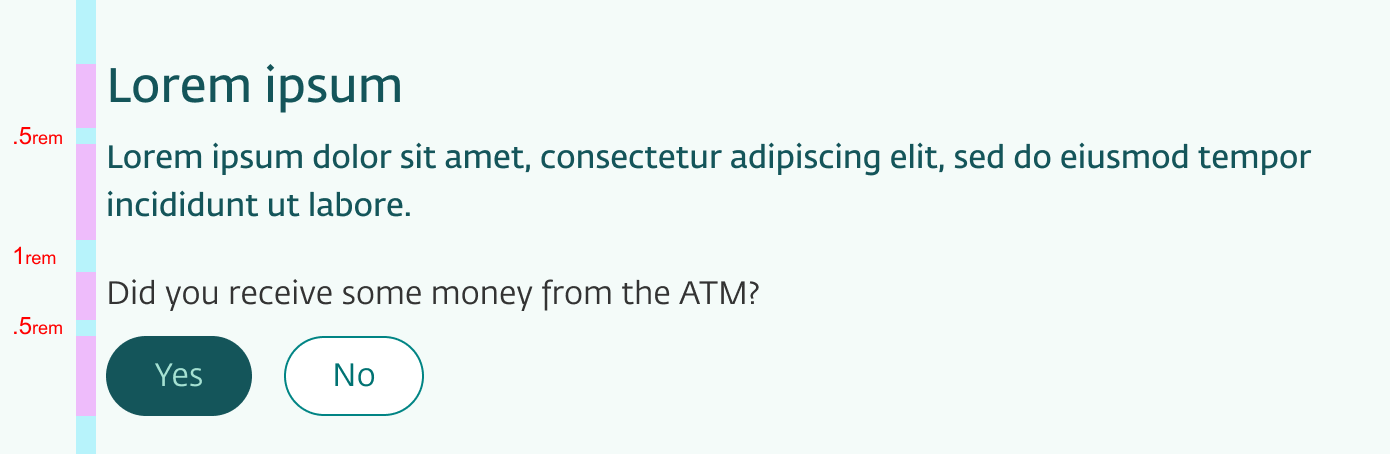

Eufemia has a Spatial System with a grid of 8px (0.5rem). This is simply a guide grid which helps with making design decisions about the sizes of components, elements, margins, paddings etc.

Also have a look at the designers example guide on using Eufemia's spatial system for layout.

Spacing Helpers#

Spacing follows a specific pattern:

NB: When combining sizes we only allow increments of 0.5rem, so xx-small will not increment by 0.25rem when combined with other sizes.

Code Editor Extensions#

You may be interested to install an Eufemia code editor extension that allows you to quickly auto complete the correct spacing.

Components and Spacing#

Also, have a look at the Space component and the fact that every component supports spacing out of the box.

<Button top="small" />
<Button right="large x-small medium" />
<Button space={{ top:'small', right: 'large x-small medium' }} />

CSS Custom Property#

margin-top: calc(var(--spacing-large) + var(--spacing-small));

The Space component and Space Components (Emotion)#

import { Space } from '@dnb/eufemia/components'

// A div with a margin-top of 2.5rem
<Space top="large x-small">
  ...
</Space>

// With Styled Components
const Custom = styled(Space)`
  /* additional css */
`
<Custom top="large x-small">
  ...
</Custom>

Using Spacing helpers#

You may use the internals to build helpers suited to your needs.

import { calc } from '@dnb/eufemia/components/space/SpacingUtils'

// With Styled Components
const StyledDiv = styled.div`
  margin-top: ${calc('medium large')};
  margin-top: ${calc('medium', 'large')};
  margin-top: ${calc('1.5rem', '2rem')};
  margin-top: ${calc('24px', '32px')};
`

All of the examples do output: calc(var(--spacing-medium) + var(--spacing-large))

Invalid values will be corrected to its nearest spacing type (e.g. 17px to var(--spacing-small)).
